The Horntools Alpha 9.5   With its low weight and compact dimensions, it is perfect for vehicles with a total weight of up to 3.5 tons. Especially for touring vehicles that are fully equipped, the winch should not have too much weight, but still have to do great things. Furnishing: 9.2 mm Ø galvanized steel cable with 26 m length with hook INFO: steel cable is included separately in the scope of delivery stainless steel roller rope window remote control 1x cable potted reinforced relay (contactor) waterproof motor IP67 sealed by groove with sealing ring removable control unit (so that the control can be installed as desired) freewheel lever * gear neutral position made of stainless steel cross braces made of stainless steel reinforced rope drum ** (suitable for use with plastic rope) powder-coated aluminum die-cast housing, motor / gearbox reinforced contactor housing made of deep-drawn sheet metal, powder-coated internal drum brake with 3 brake shoes cable length: 1.4 m cable cross section: 35 mm² 3-year warranty - this warranty exists independently of the existing gratuitous statutory rights for defects. The statutory rights in respect of defects are not restricted by this guarantee. Operating instructions * A freewheel lever is used to decouple the gearbox to quickly unwind the winch by hand. Technical specifications: working range voltage: 10-16 Volt max. Power consumption 365 Amp ** train speed free of load 7m / minute traction 4,300 kg ** 3-stage planetary gear 230: 1 geared down gross weight: 40 kg net weight: 32.3 kg weight with steel cable and roller cable window: 37.5kg Series wound motor * drum (ØxLength): 63 x 226 mm overall size (LxWxH): 577 x 160 x 225mm * Series motor with an electrically generated magnetic field** Values ​​can vary considerably, depending on the battery system, the winch can pull up to twice, the traction is designed for a standard 70AH battery. With more powerful battery systems, the pulling power must be limited by the current / voltage.

The Alpha 12.0 Super Speed ​​Edition Technical data of the winch: - Working range voltage: 10-16Volt- Max. Power consumption 600A **- Train speed free of load 11m / minute- traction 5400kg **- 3-stage planetary gear 110: 1 geared down- Net weight: 25.8kg without rope and rope window- Series wound motor *- Drum (ØxLength): 63x226mm- Overall size (LxWxH): 577 x 160 x 225mm * Series motor with an electrically generated magnetic field ** Values ​​can vary considerably, depending on the battery system, the winch can pull up to twice, the traction is designed for a standard 70AH battery. With more powerful battery systems, the pulling power must be limited by the current / voltage.The bundle consists of:1x horntools Alpha 12.0 electric winch with 5.4 tons traction1x Nakatanenga winch window1x winch hook1x winch rope (optionally in gray or orange)Please note that the depicted steel cable, the winch window and the winch hook from Superwinch are NOT included in the scope of delivery.

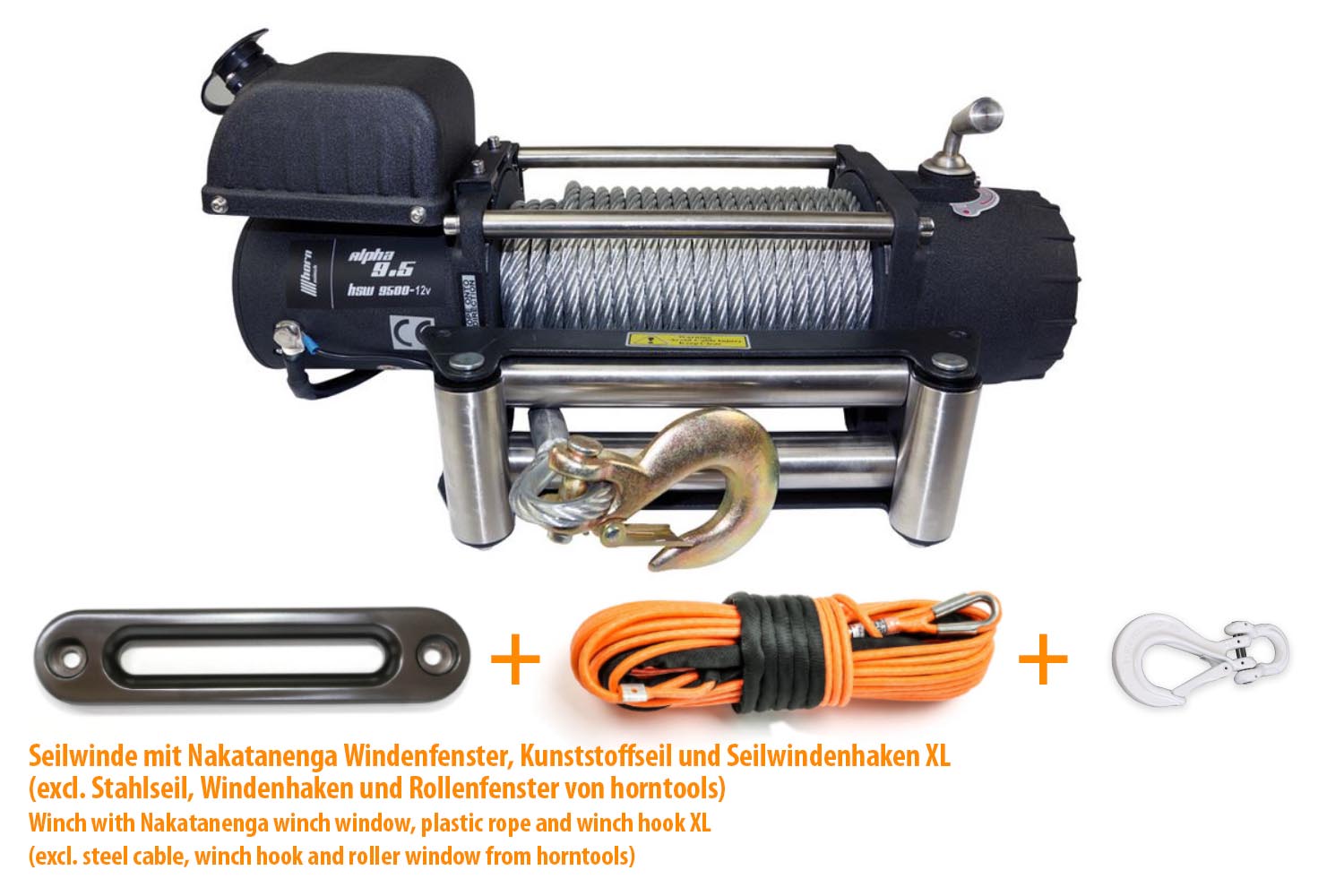

Technical data of the rope winch Alpha 9.5 - Working range voltage: 10-16Volt- Max. Power consumption 365A **- Train speed free of load 7m / minute- traction 4300kg **- 3-stage planetary gear 230: 1 geared down- Gross weight: 40kg- Net weight: 32.3kg- Weight with steel cable and roller cable window: 37.5kg- Series wound motor *- Drum (ØxLength): 63x226mm- Overall size (LxWxH): 577 x 160 x 225mm* Series motor with an electrically generated magnetic field** Values ​​can vary considerably, depending on the battery system, the winch can pull up to twice, the traction is designed for a standard 70AH battery. With more powerful battery systems, the pulling power must be limited by the current / voltage.The bundle consists of:1x horntools Alpha 9.5 electric winch with 4.3 tons traction1x Nakatanenga winch window1x winch hook1x winch rope (optionally in gray or orange)Please note that the depicted steel cable, the winch window and the winch hook from Superwinch are NOT included in the scope of delivery.

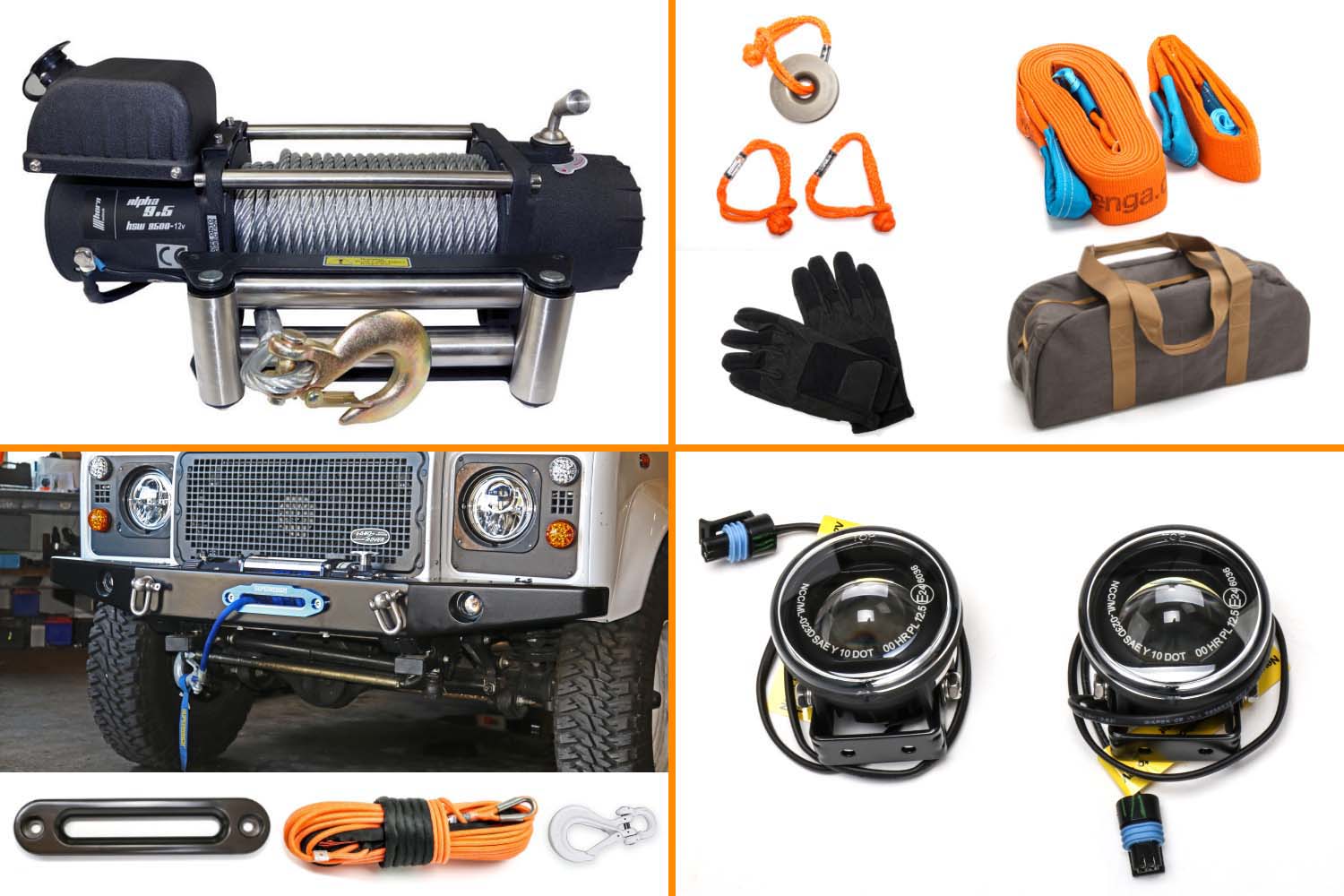

Bundle with Horntools Alpha winch incl. recovery accessories   In the Nakatanenga winch bundle for the Land Rover Defender, you get everything you need for safe and reliable self or third-party recovery: The basis is the proven Nakatanenga NAWIBU2 winch bumper, which is equally suitable for Defender with or without air conditioning. The bumper, which is manufactured locally for us, is powder-coated black and reliably protects the front of the vehicle even during tough off-road use. The raised corners of the bumper improve the vehicle's slope angle. The two integrated, swivelling recovery eyes are ideal for self-recovery and recovery by others - or for hooking in the pulley, which is also supplied and doubles the pulling force of the winch or makes difficult recoveries possible in the first place. The design of the winch bumper allows for easy registration by means of a fee-based individual approval.There is the optional possibility of mounting two 70 mm spotlights recessed - so they are optimally protected against damage in the terrain. We use modern LED driving lights from Nolden, which provide excellent light with low power consumption (only 1.1 A per headlight). They have an E-mark and can therefore be used without registration. In order to harmonise with any existing Nolden Bi-LED main headlights, the auxiliary driving lamps are available in black or chrome-coloured optics.Instead of the conventional steel cable, the winches have a synthetic fibre cable made of high-strength fibre. This is not only significantly lighter (and thus benefits the handling and efficiency of the vehicle), but also much safer to use. In the event of tearing, it does not become a dangerous projectile - rather, it simply falls to the ground. In fact, it is so light that it floats! It also drastically reduces the risk of injury from protruding strand ends. The flat Nakatanenga rope window again saves weight compared to conventional roller rope windows, is gentler on the rope and protrudes less. Depending on the vehicle version and winch type, it may be necessary to adapt the radiator grille.The winch bundle is rounded off by a useful accessory bag containing a high-strength tree anchor strap, two shackles, the above-mentioned pulley and a pair of Nakatanenga work gloves. Technical data winch Horntools Alpha 9.5 - Working range voltage: 10-16 Volt- Max. Power consumption 365 Amp **- Train speed free of load 7 m / minute- Traction 4,300 kg **- 3-stage planetary gear 230:1 geared down- Gross weight: 40 kg- Net weight: 32.3 kg- Weight with steel cable and roller cable window: 37.5 kg- Series wound motor *- Drum (ØxLength): 63x226 mm- Overall size (LxWxH): 577 x 160 x 225 mm Technical data winch Horntools Alpha 12.0:- Working range voltage: 10-16 Volt- Max. Power consumption 600 A **- Train speed free of load 11 m / minute- Traction 5,400 kg **- 3-stage planetary gear 110: 1 geared down- Net weight: 25.8 kg without rope and rope window- Series wound motor *- Drum (ØxLength): 63x226 mm- Overall size (LxWxH): 577 x 160 x 225 mm * Series motor with an electrically generated magnetic field ** Values ​​can vary considerably, depending on the battery system, the winch can pull up to twice, the traction is designed for a standard 70AH battery. With more powerful battery systems, the pulling power must be limited by the current / voltage. Depending on the vehicle version and winch type, it may be necessary to adapt the radiator grille. Bundle consisting of: 1 x winch Horntools Alpha 9.5 or Alpha 12.0 - please select the appropriate variant1 x Nakatanenga winch window1 x plastic winch cable - either in orange or grey1 x accessory bag for plastic winch cable1 x winch bumper - optionally: without headlights, with 70mm Nolden high-beam headlights black, with 70mm Nolden high-beam headlights chrome1 x cable set for winch mounting1 x winch hook XL The cable winch bundle does not come with an ABE or expert opinion for the bumper. Registration as an "equipment carrier winch" is possible at numerous test centres without any problems by means of an individual acceptance for which a fee is charged. We recommend prior consultation with the local, authorised test engineer - or alternatively registration in our company. For this purpose, we require the vehicle with mounted bumper incl. cable winch on site. You can also mount the bumper yourself - we will then take care of the registration! We will charge you for the TÜV fees - from experience 100-150 EUR - as well as the working time of approx. 1 hour.Please also note our installation flat rate! If you add this to your shopping basket during the order process and send it off, we will contact you to arrange an appointment - please note that we have several weeks' lead time for workshop appointments!For the care of the plastic winch rope and to extend its service life, we recommend the appropriate LUBI-FILL impregnation spray. For intensive and frequent use of the winch, we recommend the use of the Nakatanenga double battery system with 160Ah total capacity.

The Horntools Alpha 12.0 Super Speed ​​Edition With its low weight and compact dimensions, it is perfectly suitable for vehicles with a total weight of up to 4 tons. Furnishing: 9.2 mm Ø galvanized steel cable with 28 m length with hook INFO: Steel rope is included separately in the scope of delivery stainless steel roller rope window remote control 1x cable 1x radio integrated (delivered without battery) potted reinforced relay (contactor) waterproof motor IP67 sealed by groove with sealing ring removable control unit (so that the control can be installed as desired) freewheel lever * gear neutral position made of stainless steel cross braces made of stainless steel reinforced rope drum ** (suitable for use with plastic rope) powder-coated aluminum die-cast housing, motor / gearbox reinforced contactor housing made of deep-drawn sheet metal, powder-coated internal drum brake with 3 brake shoes cable length: 1.7 m cable cross section: 50 mm² 3 year guarantee operation manual * A freewheel lever is used to decouple the gearbox to quickly unwind the winch by hand. Technical specifications: working range voltage: 10-16 Volt max. Power consumption 600 A ** train speed free of load 11 m / minute traction 5,400 kg ** 3-stage planetary gear 110: 1 geared down net weight: 25.8 kg without rope and rope window Series wound motor * drum (ØxLength): 63x226 mm overall size (LxWxH): 577 x 160 x 225 mm * Series motor with an electrically generated magnetic field** Values ​​can vary considerably, depending on the battery system, the winch can pull up to twice, the traction is designed for a standard 70 AH battery. With more powerful battery systems, the pulling power must be limited by the current / voltage.

Cable winch set for Lada Niva / TaigaIncluding complete installation set The extremely robust bumper fits the original stops on the Lada. Now you have not only a winch holder, but a massive, shapely steel bumper, which was kept in the original design. The powder-coated bumper has a shackle holder (shackle included) and pickup points for a Farm Jack jack. ***Important!****Since the original alternator and the Lada battery are very small, we recommend one Upgrade at least the battery. Ask your Lada dealer about the possibilities. NOT SUITABLE FOR A LADA BRONTO with plastic bumper! In the version with aluminum bumper, the system fits! The grille must be cut out for new Ladas! WITH TÜV AND PARTIAL APPROVAL FOR GERMANY! The certificate applies to vehicles up to the year of construction: see below.In the case of other vehicle types, the TÜV must be contacted in advance as to whether the part is entered as the equipment carrier. Technical data cable winch:Motor: 3.8kW / 5.1 HPMotor type: Series wound motor (the magnetic field is generated electrically)Maximum power consumption: 320 ampsVoltage: 12 volts Transmission:Reduction: 210: 13-stage planetary gear Generally: Hornrope 7 to plastic rope (diameter x length): 10 mm x 30 mDrum (diameter x length): 63 x 227 mmOverall size (LxWxH): 570 x 180 x 243 mmNet weight: 32.8 kgGross weight: 35 kg Furnishing:Aluminum rope windowExtremely durable powder coatingStainless steel one-way clutch (decouple the gearbox to quickly unwind the rope by hand)Control box removable for mounting not directly on the winch Included accessories:Remote control with cableRope windowhookFixing screws 4xM10 We grant a 3-year guarantee on the gearbox and drum in compliance with the guarantee and service regulations. TÜV certificate is for the following vehicles:     Vehicle type            ABE / EG-BE no.     Variant / version212140                    e2 * 93/81 * 0183 * ..        all212140                    e2 * 98/14 * 0051 * ..        all21214                      e1 * KS * 0004 * ..           all2121A                     e1 * KS * 0008 * ..            all2121                        e2 * 98/14 * 0183 * ..        all2121                        e2 * 2001/116 * 0260 * ..   all2121 **** DA            e2 * 2001/116 * 0326 * ..   all2121DE                   e1 * KS07 / 46 * 0021 * ..  allM2121                    e2 * KS07 / 46 * 0011 * ..   allN2121                     e2 * KS07 / 46 * 0012 * ..  allM2131                    e2 * KS07 / 46 * 0077 * ..  all

Anyone who has opted for high-performance synthetic materials for mountain equipment will benefit from cascading solutions. One steel part after the other can be replaced in the module chain with lightweight and synthetics. With the decision to use a synthetic winch rope, the classic deflection pulley, with its wearing parts, the high weight and the tendency to get stuck, also had its day. With so-called NMP pulleys - "No Moving Parts" - nothing rolls anymore. In principle, it is only a rope guide block, through which synthetic ropes glide easily, even under high loads, due to the low frictional resistance. This does NOT work with steel cables! Our Nakatanenga Heavy Duty pulley made of hard anodized aluminum for ropes from 8-14 mm is manufactured according to military standard MIL-A-8625F TYPE III, has a breaking load of 18 t and weighs only 1.65 kg. The large radius of the "reel" is particularly important in the off-road area, since dirt and foreign objects cannot easily affect the cable routing.  The NMP roll is fastened with the supplied 10 mm thick soft shackle with a breaking strength of up to 12 t, optionally in gray or orange. You can also order the pulley individually, without shackles.

Nakatanenga Soft Shackle 10 mm – Breaking Strength 12,000 kg In principle, soft shackles are incredibly low tech: They are simple rope loops with a stopper knot and a fixed noose. The shackle is held together and tightened by the very load it is meant to hold and is easily opened or fastened. Maybe it is the very simplicity of the concept that accounts for some users’ skepticism and lets them stick to steel shackles even when using synthetic rope. But a rope shackle’s advantages are huge: there is hardly any risks for injury, very little weight, no tools necessary, no corrosion, no scratching or denting of vehicle or equipment parts und no bending or jamming under load.  As with all synthetic ropes, extra caution should be taken to avoid friction damage, fraying, heat and contact with chemicals. The rope shackles are available in grey and orange. Color: Grey, OrangeDiameter: 10 mmBreak strength: 12,000 kgRope elongation: 4,8%

Accessory kit for winches Whether as an accessories kit for winching enthusiasts or as handy emergency pack on overlanding trips, our Nakatanenga winching packages contain everything you need when you’re stuck in a rut. You have the choice between a steel version, primarily for steel cables, or the lightweight pack made from synthetics and aluminum, exclusively designed for synthetic winch ropes. Both varieties basically consist of the same components: two recovery straps, a pulley or block, shackles, protective gloves and a bag. The steel rope kit contains two steel shackles, a foldable snatch block with a work load WLL of 3.5 tons and a shoulder bag made from 100 % cotton. The synthetic kit boasts an NMP pulley made from Eloxal coated aluminum, three soft shackles and the Nakatanenga tool bag coated in robust and waterresistant Nylon PU. Straps Key items in the accessory kits are two 77 mm wide, high quality recovery straps. Made from polyamides, these straps come in lengths of 2 and 8 m and have a breaking strength of up to 9 tons. By design, the short strap is also a perfect tree trunk protector. FYI: The long strap is a new addition to the steel set and does not fit the cotton bag. It has to be stored separately. Shackles The recovery straps feature end loops strengthened by machine sewn Polyester coats. The 10 mm soft shackles in orange or gray are fixed through these end loops or “eyes”. The kit contains two soft shackles for this purpose and another one to fix the NMP block. The synthetic shackles are ultra-light and with a breaking strength of up to 12 t extremely loadable. As always, synthetics means little danger of injury, easy handling, no corrosion and no damaging of vehicle and equipment. The steel kit on the other hand uses traditional steel shackles with screw bolts. Pulleys The pulleys or blocks in the two kits differ considerably in design, material and usage. In the synthetics kit, the NMP block made from hard, Eloxal coated aluminum is fixed by a soft shackle and is exclusively meant to be used with plastic winch ropes of 8 to 14 mm thickness. Produced to military standards, this block has a breaking strength of 18 t and weighs only 1.65 kg. WARNING: Again, the NMP pulley must not be used with steel cables. If you are using steel cables, please choose the other kit with the metal snatch block. Our construction of high-strength 6 mm galvanised steel and a 15 mm polymer pulley accepts any type of mountain rope between 8 - 13 mm: Synthetic, plasma and steel ropes.The working load of the pulley is 9,000 lbs or just over 4 t, the breaking load is 19,300 lbs or over 8.7 t and is best suited for steel ropes. Bags The synthetics kit comes in our robust, high quality Nakatanenga tool bag. It’s flexible, very lightweight and uses just as much storage space as the actual contents. That makes it ideal for quick, compact packing and easy transport of all your winching and recovery equipment. Shackles and smaller item fit into separate pockets inside. The steel kit can be stowed in the cotton shoulder bag, with the exception of the long strap. Gloves Last but not least, both sets come with a pair of protective gloves, made from elastic synthetic materials. These sturdy gloves feature grippy Almara plastic leather in the palm area and are not available separately, unlike the rest of the contents.
